Choosing a Three Phase SSR AC-AC in 2026 requires more than comparing purchase prices. Industrial loads now demand cleaner switching, predictable heat behavior, and dependable control. Factory automation, HVAC systems, battery equipment, and process heaters all expose weak component choices quickly.
Recent reports from Grand View Research and MarketsandMarkets indicate continued growth in the global solid-state relay market through 2030. Their analyses connect this expansion with industrial automation, energy-efficiency projects, and the replacement of mechanical switching devices. The reports also highlight thermal management, switching reliability, and application-specific ratings as important purchasing factors. Those findings sound straightforward. Real installations are less forgiving.
Dr. John G. Kassakian, a respected power-electronics researcher, stated, “Power electronics is the technology associated with the efficient conversion, control, and conditioning of electric power.” That principle fits Three Phase SSR AC-AC selection closely. A relay may carry the rated current, yet fail inside a crowded cabinet with poor airflow. Check voltage margin, load type, zero-cross or random switching, leakage current, surge immunity, and heat-sink requirements. Measure the cabinet temperature.
Do not trust the label alone.
This guide compares practical selection criteria, including control compatibility, phase balance, protection, certification, and lifecycle cost. It also questions a common assumption: higher current ratings do not automatically guarantee longer service. Manufacturer curves, verified test data, and field experience should influence the final decision. The best choice is the one that remains stable during real starts, stops, surges, and temperature changes.

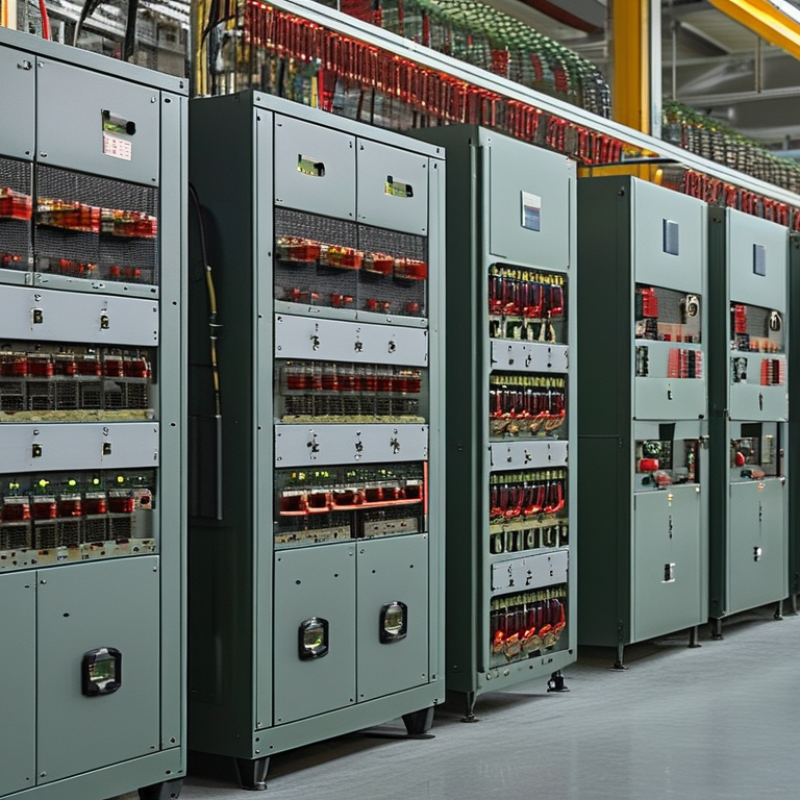

How to Choose Three Phase SSR AC AC in 2026?
Define Three-Phase AC-AC SSR Requirements: 24–480 VAC and 10–100 A
Choosing a three-phase AC-AC solid-state relay starts with the actual operating range. Confirm whether the system uses 24, 230, 400, or 480 VAC. The relay’s voltage rating must exceed the highest measured line voltage, including reasonable supply variation. A 480 VAC system needs more than a nominal label. Check phase-to-phase voltage, frequency, and transient conditions.
Current selection requires equal care. A stated range of 10–100 A does not mean the relay can carry 100 A continuously in a warm cabinet. Calculate the current on each phase, then review derating curves, ambient temperature, and switching cycles. Motors, heaters, and transformers behave differently. An inductive motor can create demanding starting conditions. Heat needs a clear path. Use a correctly sized heatsink, thermal compound, airflow, and short cable runs where practical.
Zero-cross switching can reduce electrical noise for resistive heaters. Random turn-on may suit phase control or some demanding loads, but it can increase interference. Check leakage current, minimum load, control voltage, isolation, and built-in protection. Fuses or circuit breakers still matter. An SSR is not a replacement for complete overcurrent protection.
A neat datasheet can still mislead. Field temperature often exposes weak assumptions. Test one phase under real load, measure the case temperature, and inspect terminal torque after operation. The design may need revision. That is normal. Reliable selection comes from measured conditions, not only the 10–100 A headline.
Confirm the actual line voltage, such as 24, 230, 400, or 480 VAC. The SSR rating must exceed the highest measured voltage. Include supply variation and transient conditions. Check phase-to-phase voltage carefully.
Not necessarily. A 100 A label may assume ideal cooling and a lower ambient temperature. Calculate the current on every phase. Review derating curves, switching cycles, and cabinet temperature. Warm cabinets expose weak assumptions.
Zero-cross switching waits for the next voltage zero. It usually reduces interference and suits resistive heaters, ovens, and stable heating zones. At 50 Hz, the delay may reach 10 milliseconds. Random-turn-on responds faster and suits timing-sensitive loads. It may increase inrush current and electrical noise.
Not always. Motors may hesitate during repeated commands. Transformers can create demanding energizing currents. Check starting current, not only running current. The load decides.
Calculate heat from the on-state voltage drop across all three phases. Use the specified heatsink, thermal compound, and airflow. Measure the case temperature during real operation. Short cable runs may help reduce unwanted heating. Airflow is often missed.
It indicates a withstand test under specified conditions. It does not permit continuous operation at 2.5 kV. Verify the test duration, method, and traceable report. Also check clearance, creepage, pollution degree, and insulation voltage.
An SSR does not replace overcurrent protection. Use correctly selected fuses or circuit breakers. Review short-circuit behavior and fault response. Check leakage current when the SSR is off. Electronic loads may react to small leakage.
Test one SSR under the actual load and enclosure conditions. Measure each phase separately. Inspect terminal torque after operation. Compare temperatures between phases. A bench test may pass. Installation can reveal unequal airflow or load sharing.
Choosing a Three Phase SSR AC-AC in 2026 requires careful evaluation of electrical, thermal, and safety requirements. Begin by defining the operating range, such as 24–480 VAC and 10–100 A, and confirm that the relay can handle the actual load type and switching frequency. At 50/60 Hz, zero-cross switching can reduce electrical noise and inrush stress, while random-turn-on switching may be more suitable when precise phase control is needed.
Thermal management is equally important because solid-state relays generate heat during operation. Use an estimated loss of 1.5–2.0 W per ampere to select an appropriately sized heat sink and maintain safe temperatures. Also verify compliance with IEC 60947-4-3, adequate input-output isolation, and at least 2.5 kV dielectric strength. Finally, check three-phase protection features, leakage current, short-circuit coordination, and fusing limits such as 100 kA²s to support reliable and safe long-term operation.
